Brand
Kingston
Title

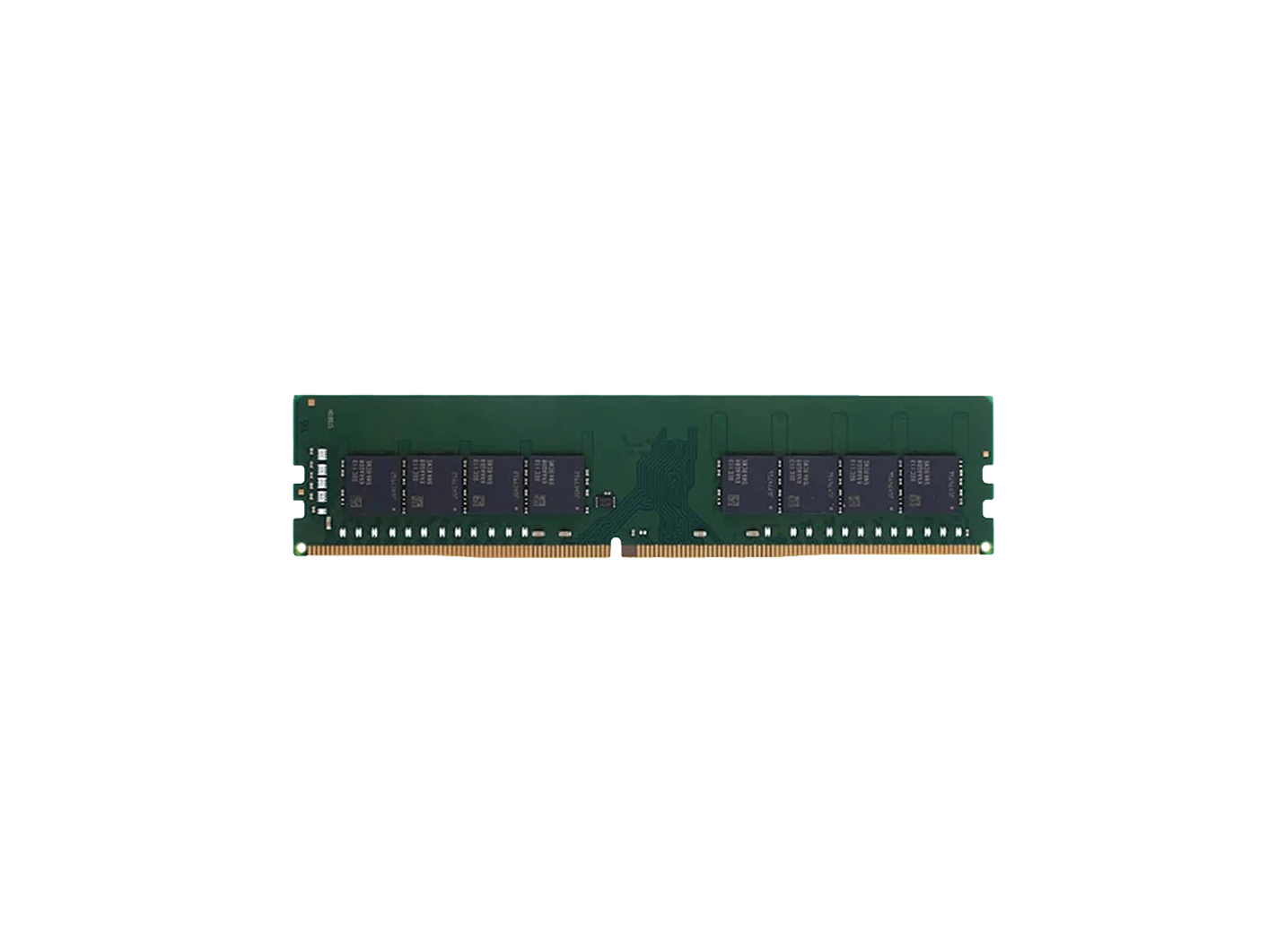

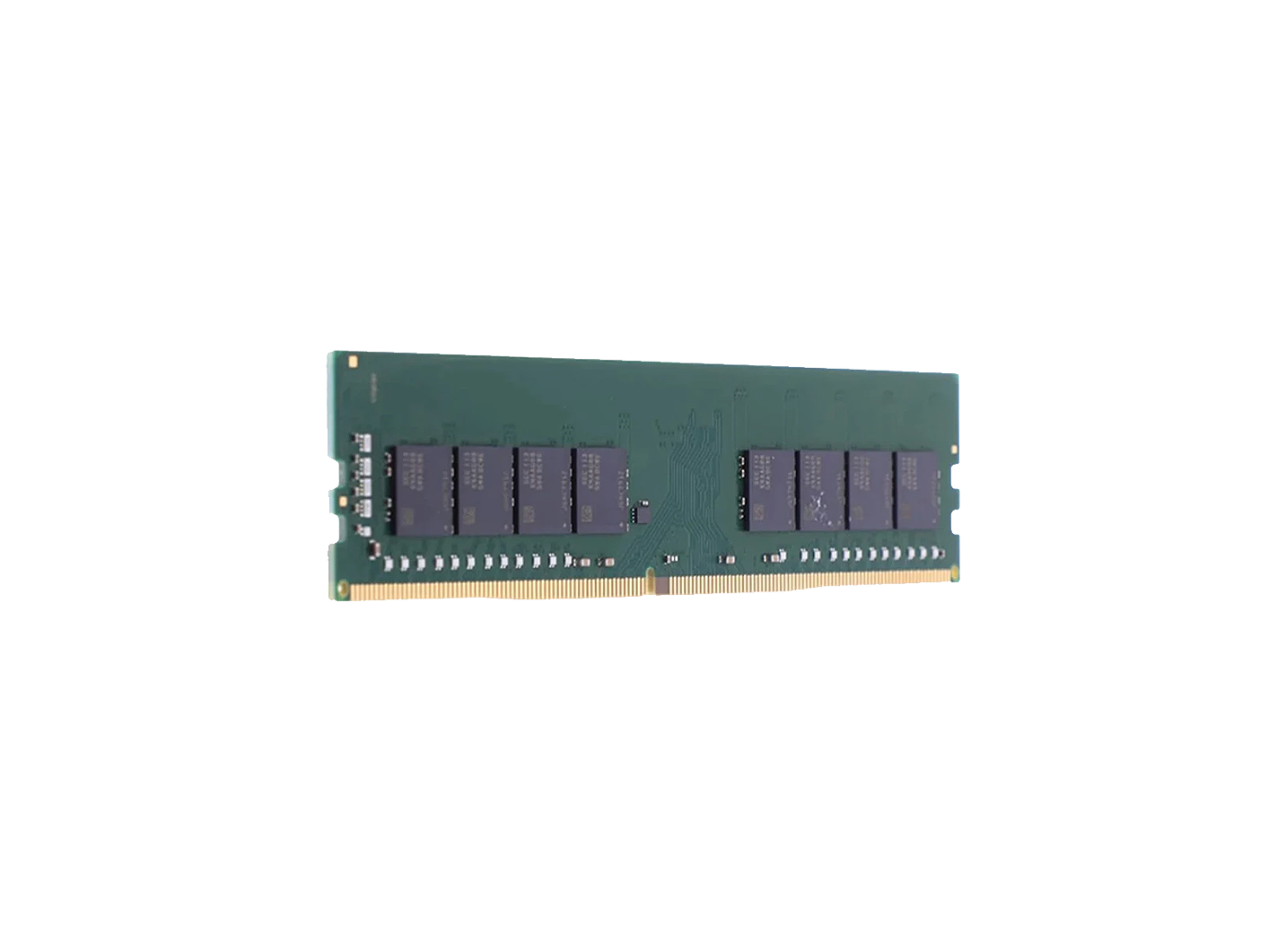

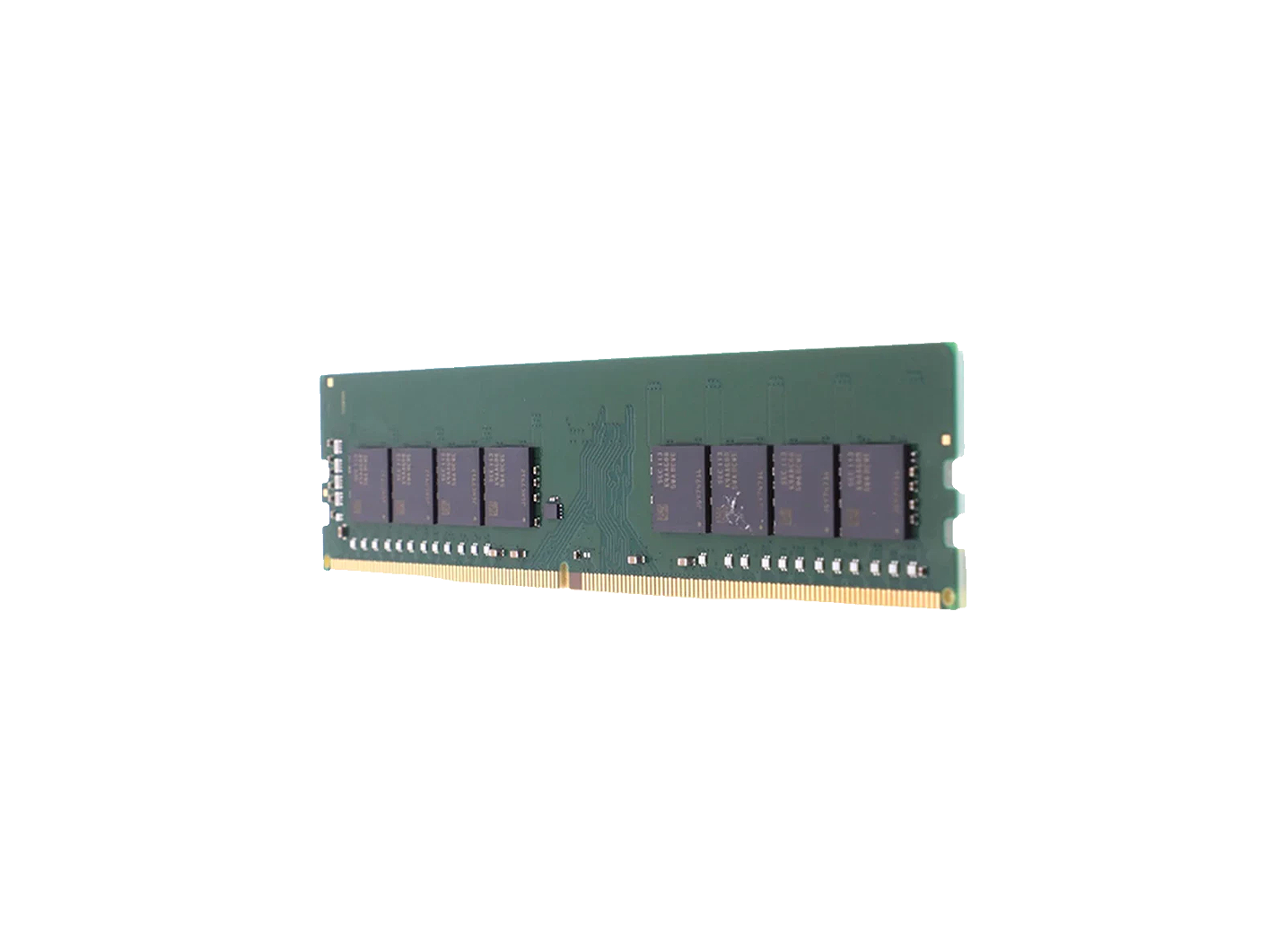

8GB DDR4-3200 KINGSTON KVR32N22S8/8WP
Power Supply
VDD = 1.2V Typical
VDDQ
1.2V Typical
VPP
2.5V Typical
VDDSPD
2.2V to 3.6V
On-Die Termination
Nominal and dynamic ODT for data, strobe, and mask signals
LPASR
Low-power auto self refresh
DBI
Data bus inversion for data bus
VREFDQ
On-die generation and calibration
Rank
Single-rank
SPD EEPROM
On-board I2 serial presence-detect
Internal Banks
16 banks; 4 groups of 4 each
Burst
Fixed BC4 and BL8 via MRS
OTF
Selectable BC4 or BL8 on-the-fly
Topology
Fly-by
Bus
Terminated control command and address bus
PCB Height
1.23” (31.25mm)
Compliance
RoHS Compliant and Halogen-Free
