Brand
Eaton
Title

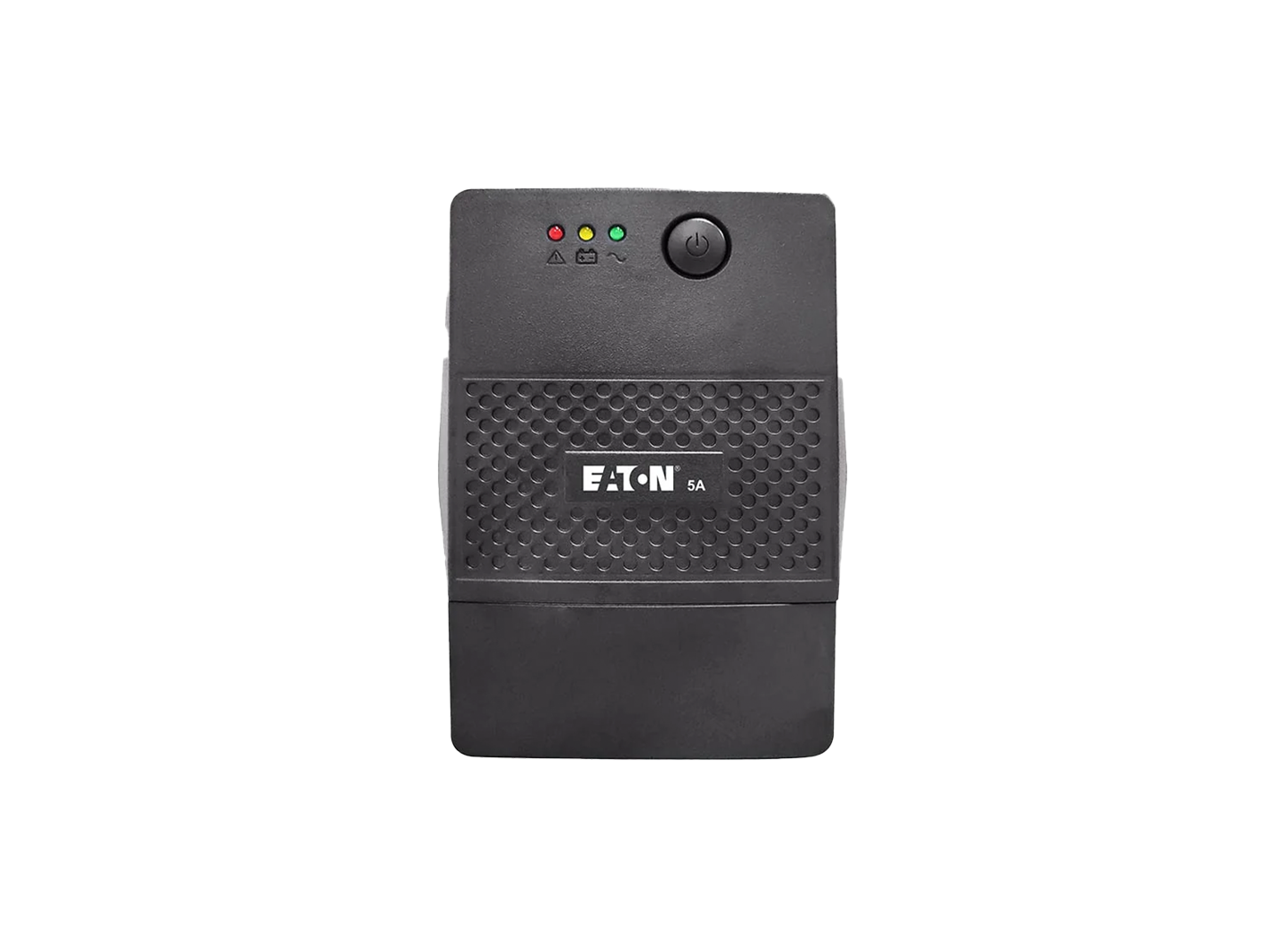

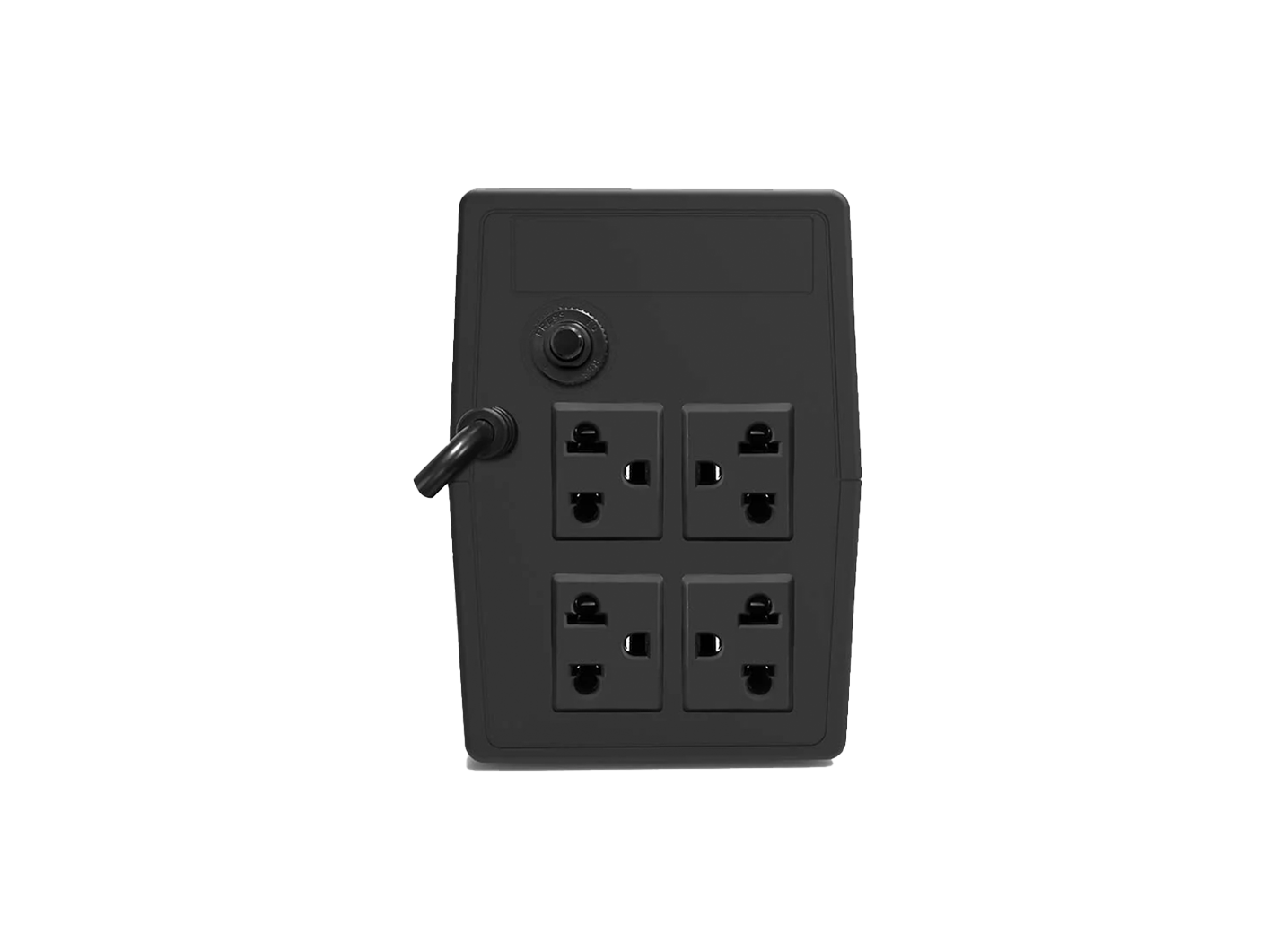

EATON 5A 700I-NEMA 700VA 360W UPS
Rating
700VA / 360W
Format
Tower
Input Voltage Range
140–300 VAC
Frequency Range
60/50 Hz (Auto-Sensing)
Surge Protection
Yes
Generator Compatible
Yes
Mute by Power Key
Yes
Circuit Breaker
Yes
Output Voltage
230 VAC
Output Voltage Regulation (Battery Mode)
±10%
Battery Waveform
Stepped Sine Wave
Protection
PCBA Current Sensor (F/W Protection)
Output Backup Socket
DIN Model
Transfer Time
2–6 ms Typical / 10 ms Maximum
Battery Type
12V / 7Ah × 1
Floating Charging Voltage
13.5–13.8V
Recharge Time
4–6 Hours to Recover 90% Capacity
Typical Battery Runtime (IT Load 100W)
18 Minutes
Typical Battery Runtime (50% Load)
5 Minutes
Typical Battery Runtime (75% Load)
1.5 Minutes
On / Off Switch
Yes
Indicator
LED
Communication – USB
No
Communication – RS232
No
RJ11 Protection
No
Dimension (D × W × H)
297 × 101 × 142 mm
Weight
4 kg
Package
Color Box
Part Number (Schuko Outlets)
5A700I-DIN
Part Number (NEMA Outlets)
5A700I-NEMA
Part Number (Universal Outlets)
5A700I-UNI
