Brand
Intel
Title

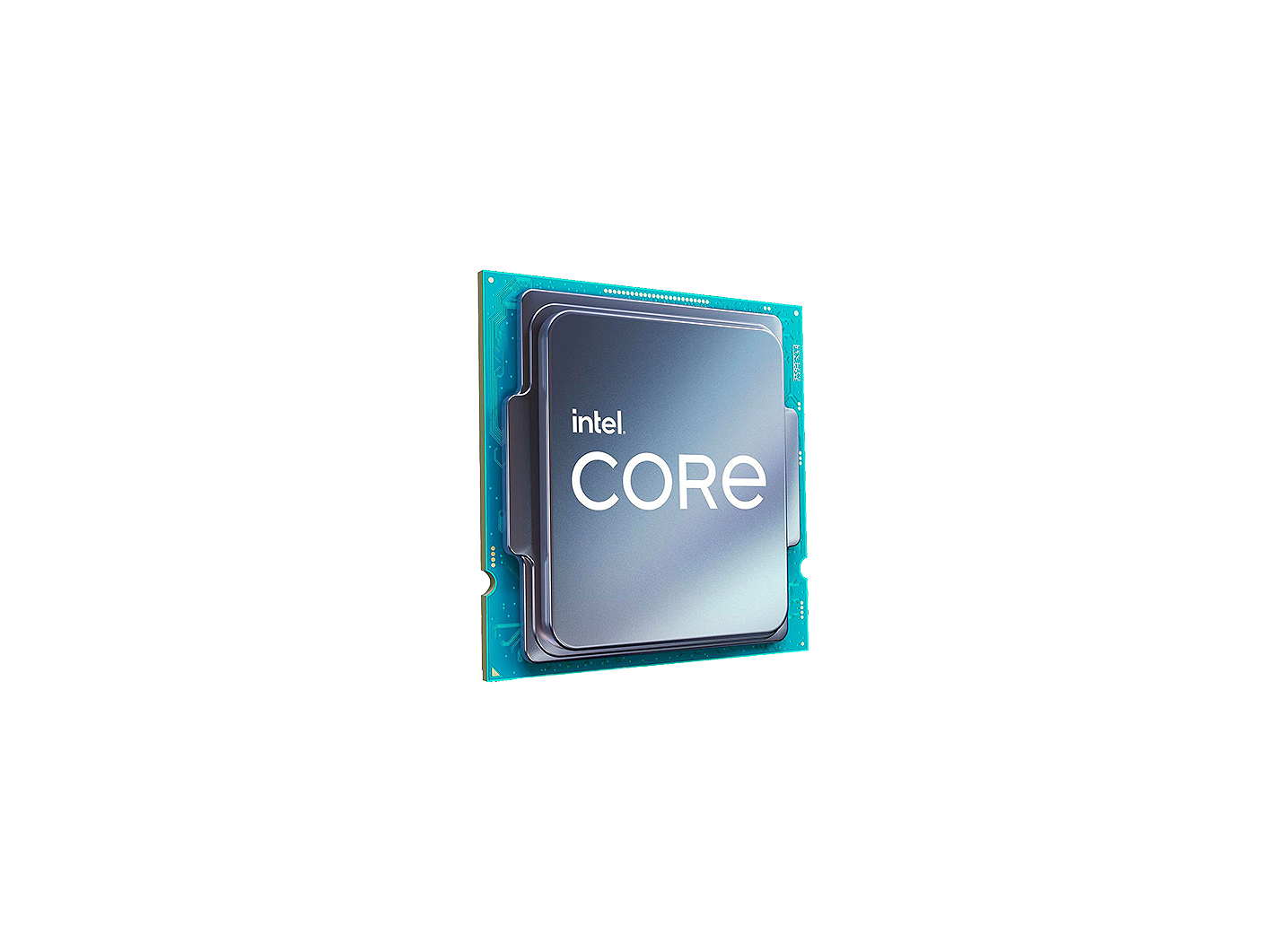

INTEL CORE I7 12700 1.6GHZ (MAX 4.9GHZ) 25MB 65W LGA1700
Processor
Intel® Core™ i7-12700 (12 Cores, 20 Threads, up to 4.90GHz Turbo)
Architecture
Intel 7 (Alder Lake)
Socket
FCLGA1700
Performance Cores
8
Efficient Cores
4
Cache
25MB Intel® Smart Cache
L2 Cache
12MB
Base Power
65W
Maximum Turbo Power
180W
Integrated Graphics
Intel® UHD Graphics 770
Graphics Max Frequency
Up to 1.50GHz
Graphics Outputs
HDMI 2.1, DisplayPort 1.4a, eDP 1.4b
Maximum Memory
128GB
Memory Support
DDR5-4800 / DDR4-3200
Memory Channels
Dual Channel
Maximum Memory Bandwidth
76.8 GB/s
PCI Express Support
PCIe 5.0 & PCIe 4.0
Maximum PCIe Lanes
20
Maximum Turbo Frequency
4.90GHz
Performance-core Base Frequency
2.10GHz
Efficient-core Base Frequency
1.60GHz
Maximum Supported Displays
4
Maximum HDMI Resolution
4096 × 2160 @ 60Hz
Maximum DisplayPort Resolution
7680 × 4320 @ 60Hz
Maximum eDP Resolution
5120 × 3200 @ 120Hz
DirectX Support
DirectX 12
OpenGL Support
OpenGL 4.5
Intel® Quick Sync Video
Supported
Intel® Hyper-Threading Technology
Supported
Intel® Turbo Boost Max Technology 3.0
Supported
Intel® Thread Director
Supported
Intel® Virtualization Technology (VT-x/VT-d)
Supported
Intel® AES New Instructions
Supported
Intel® Optane™ Memory
Supported
Tjunction
100°C
